Laundry Liquid Beads packing machine laundry beads filling machine Packing machine

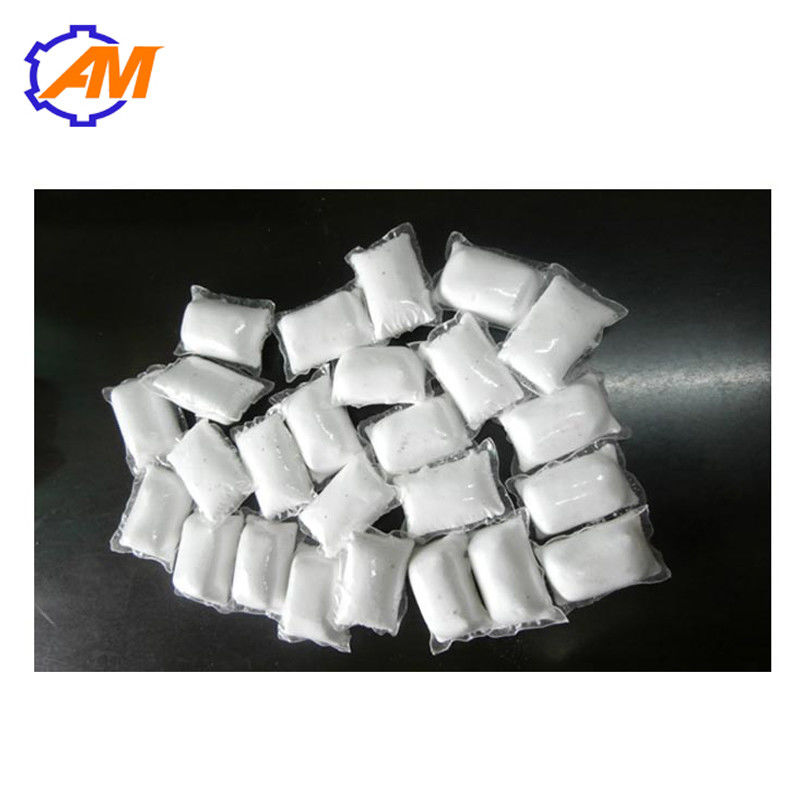

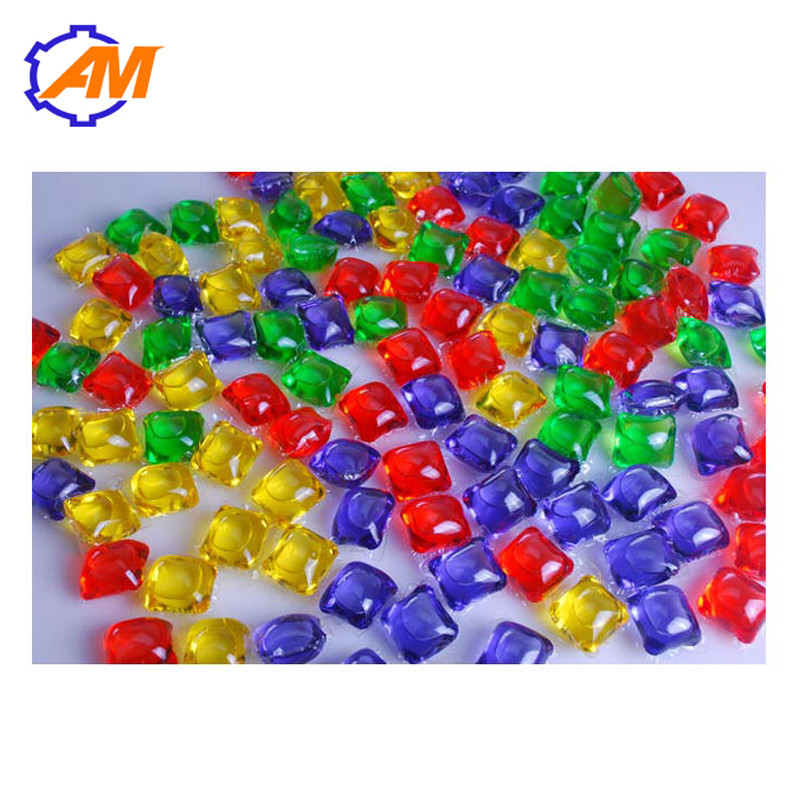

Full automatic water-soluble PVA film packing machine can used to measure an pack pesticide, detergent, medical powder/granule/liquid etc. Water -soluble PVA film has good tensile strength. The product is elastic globular after the film stretching and packing.

This machine adopts full automatic control packing way. It can automatically make pod, fill, seal, cut and discharge. It don’t need people to touch the materials, easy operation.

Technical Parameters
Model	AM-4-100
Machine type	Drum-type
Body shell	304 stainless steel
Component material	Hardened 520 aluminum oxidation treatment, 45# steel chrome plating
Electrical control	Mitsubishi Japan PLC, WEINVIEW Taiwan human-computer interface
Temperature control	PID intelligent control the temperature of heating part
Capacity	4 rows Approx 200 pcs/min
Packing volume range	15-35g
Packing size range	37*53*20mm(Not including sealing side), can be customized
Power voltage	380V, 50Hz
Pneumatic	0.6MPa, 150L/min
Dimension	3000*120*280mm
Weight	450KG
Warranty	1 year



Product
